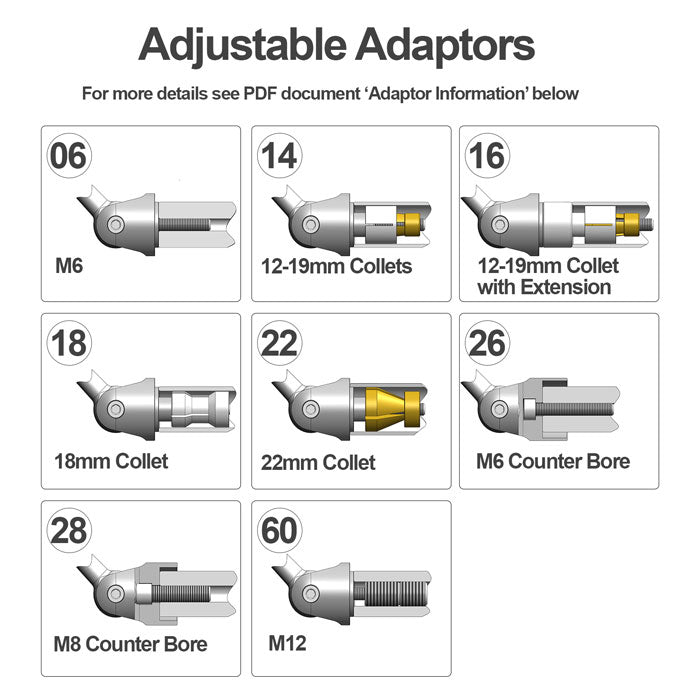

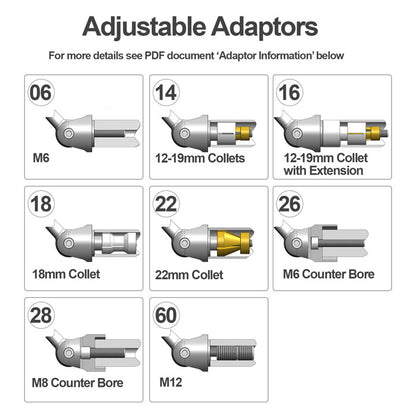

Oberon Performance to fit either 7/8" or 1" handlebars with an unobstructed internal diameter of 12-19mm or 22mm. Additional adaptors can be ordered to fit specific bikes (listed below). If your bike is not listed then measure the diameter of the handlebar and order the and order either the 1 inch or 7/8 inch variant.

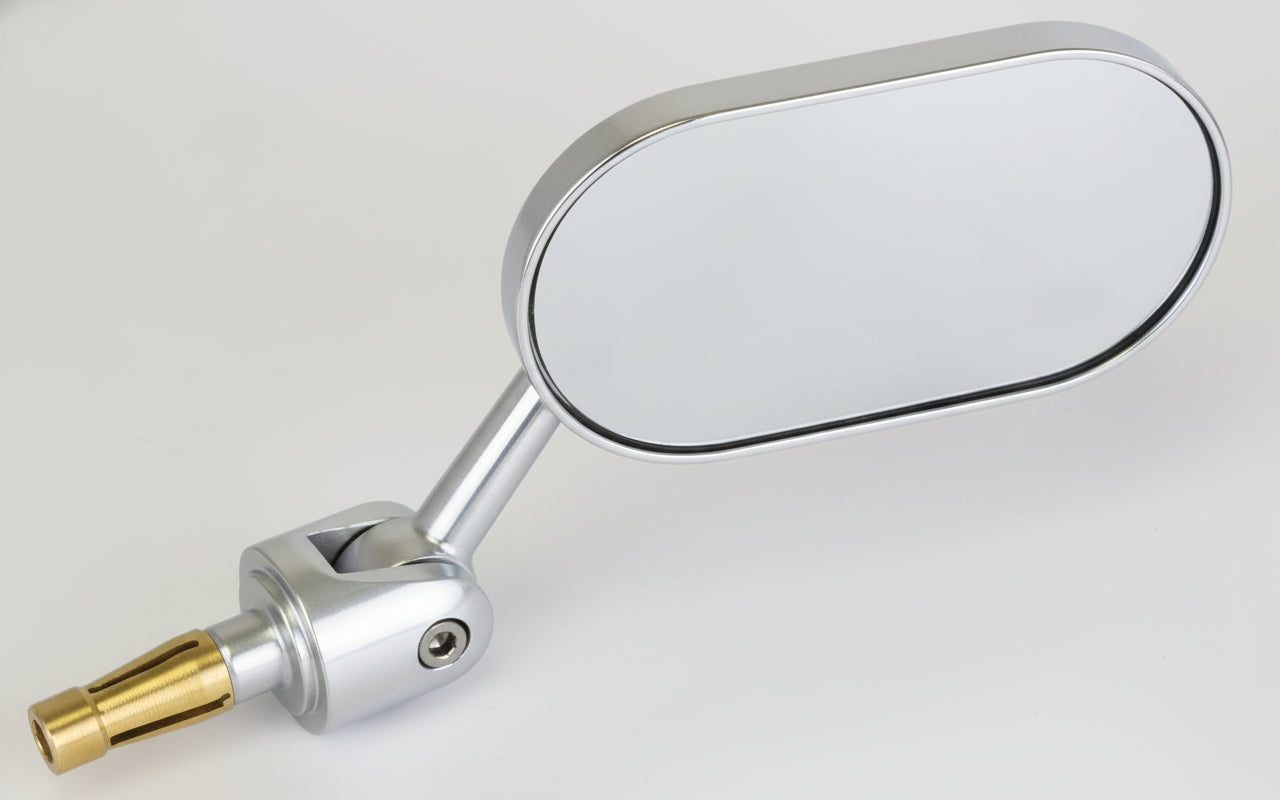

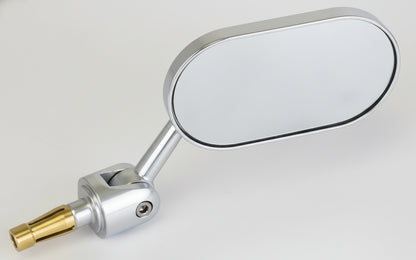

CNC machined from 6000 series billet aluminum and designed to provide the sleekest look. The mirror can fold through 220 degrees which tucks the mirror in past the bar end for those arrow gaps. Adjustments can be made easily.
The mirror lens is first surface chrome glass and automotive standard convex (Mirror glass has a spherical radius of 1260mm) giving superb visibility and weather resistance. The finish is a high quality anodize that leaves a silky sheen that will retain its looks years after life on the road.
The adjustable bar end mirror is more than just a mirror, it is a bar end weight solution too. The combined weight of the bar end mirror easily surpasses any OEM bar end weight giving total peace of mind. And, due to the unique Oberon Performance design of collet fittings, the mirror will feel 'welded' to the handlebar as the collet will be forced to be bigger than the dimension it sits in.
Mirror Bezel drawings and dimensions
Alloy Aluminum 6000 series
Colours Black Silver
Bezel

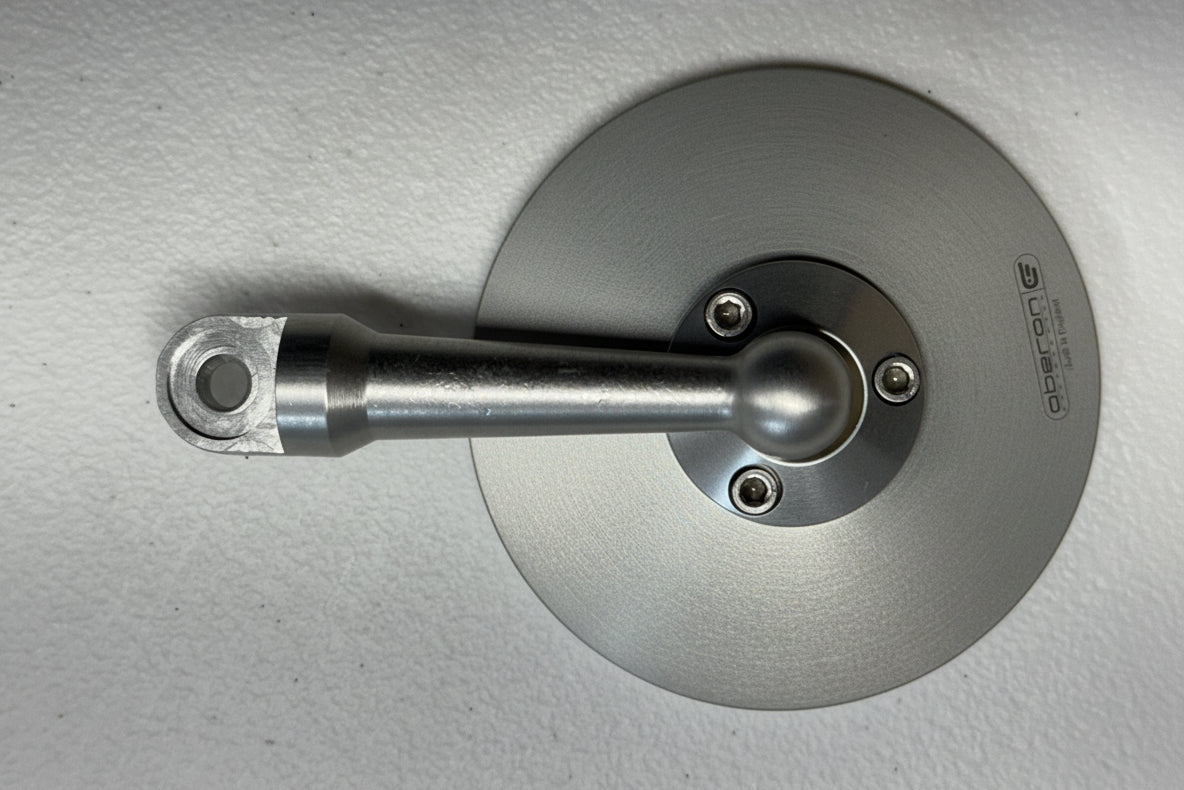

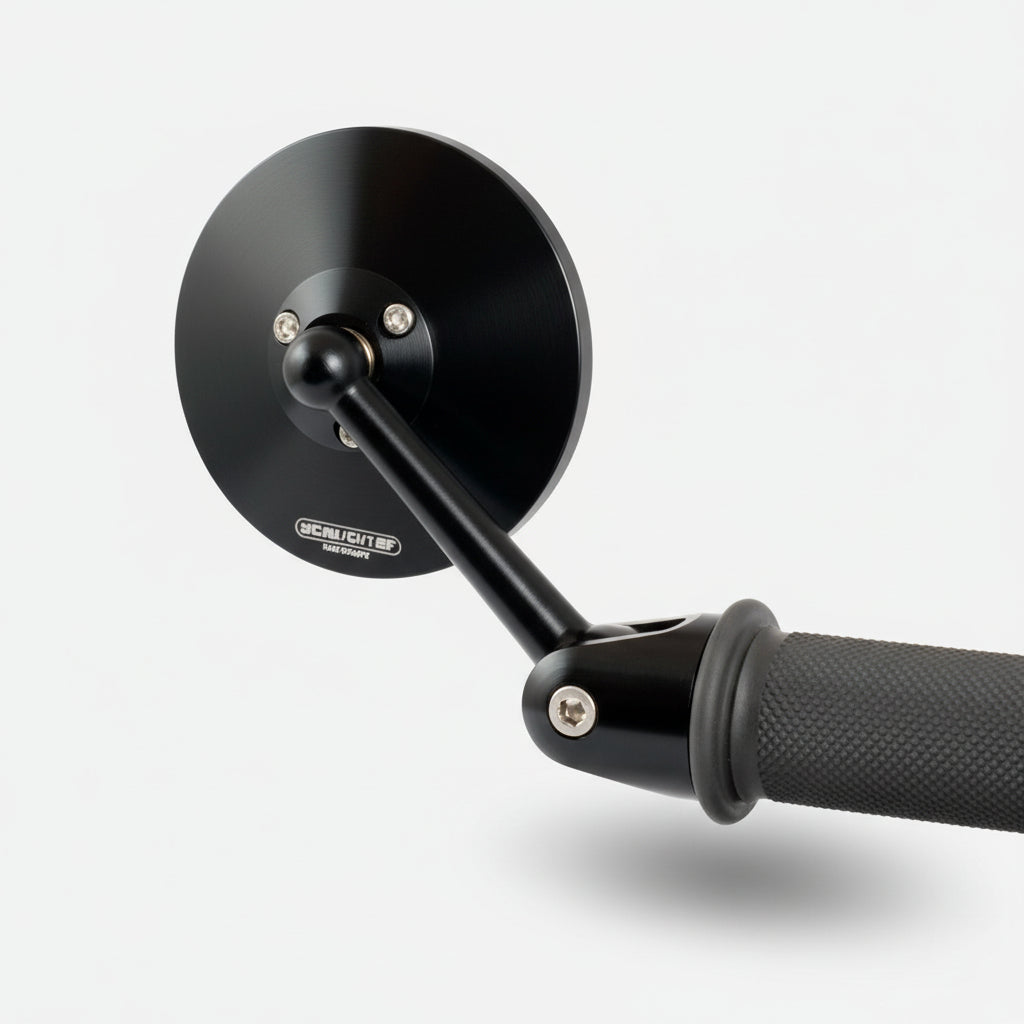

RoundØ75mm

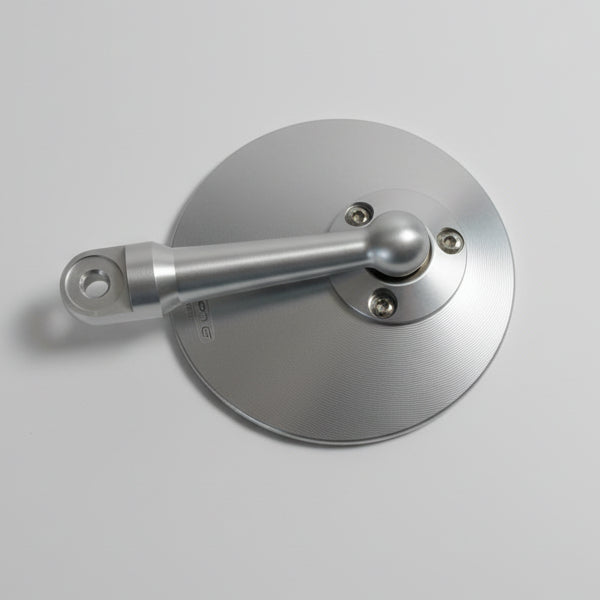

Bezel OffsetØ75mm - 20mm Max offset

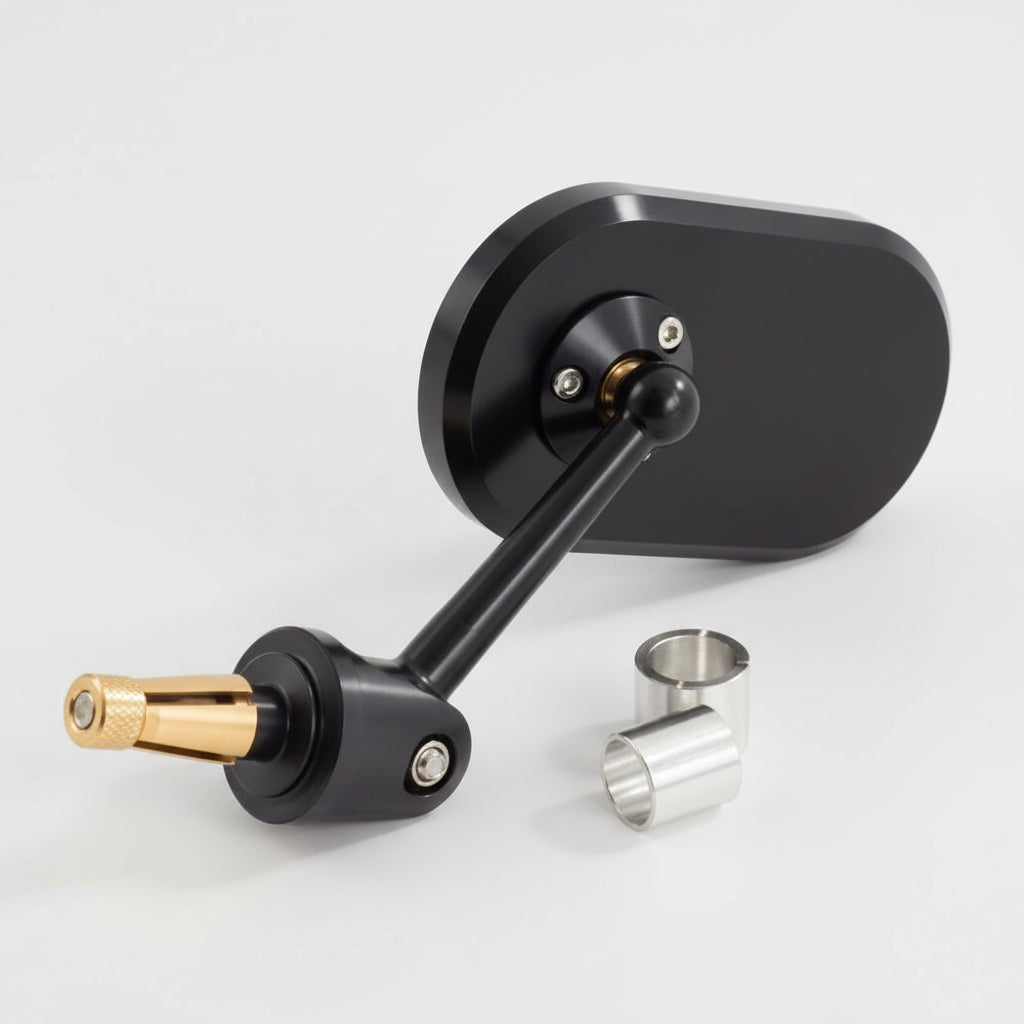

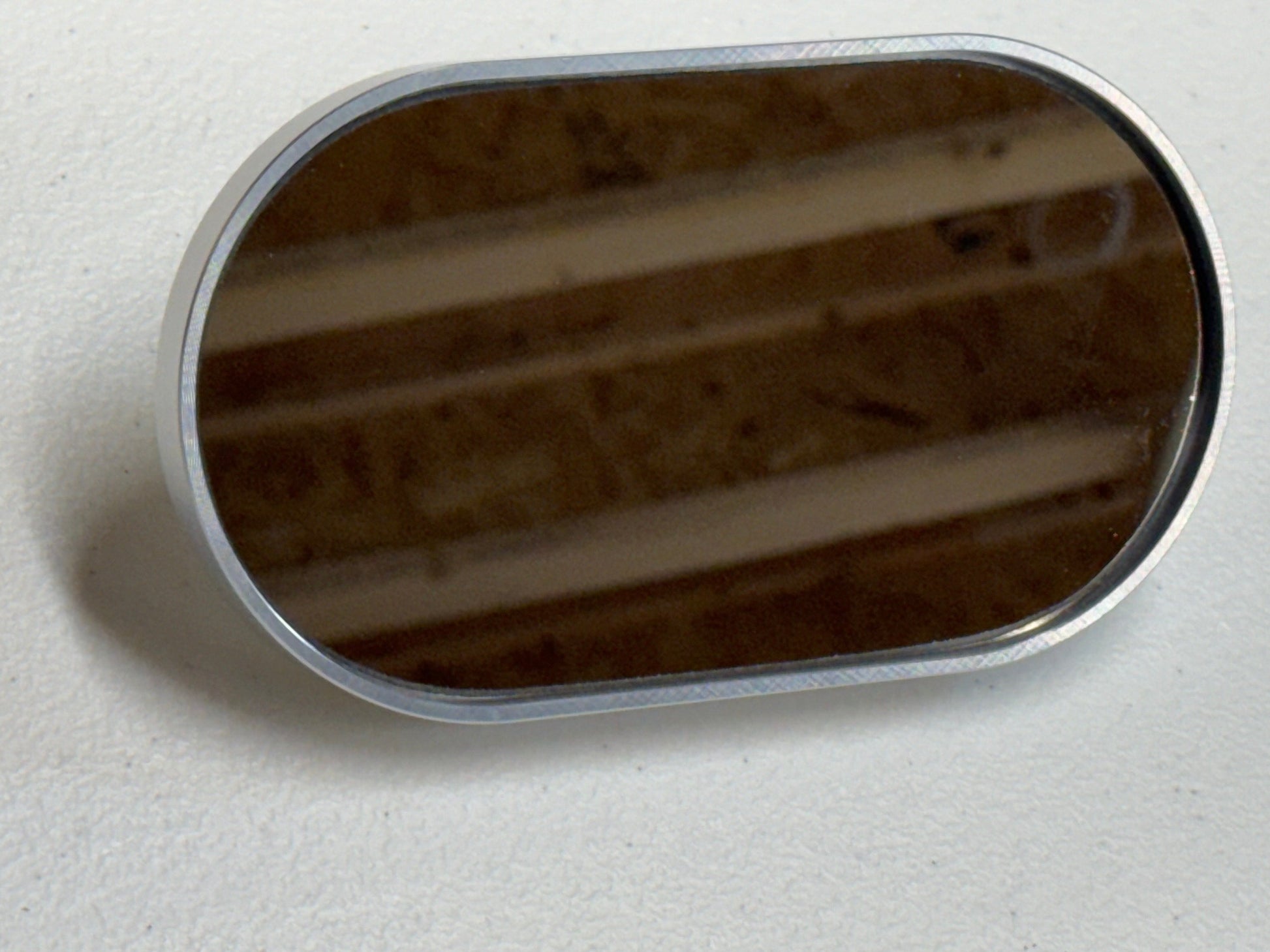

Bezel Oblong109mm long x 62mm wide

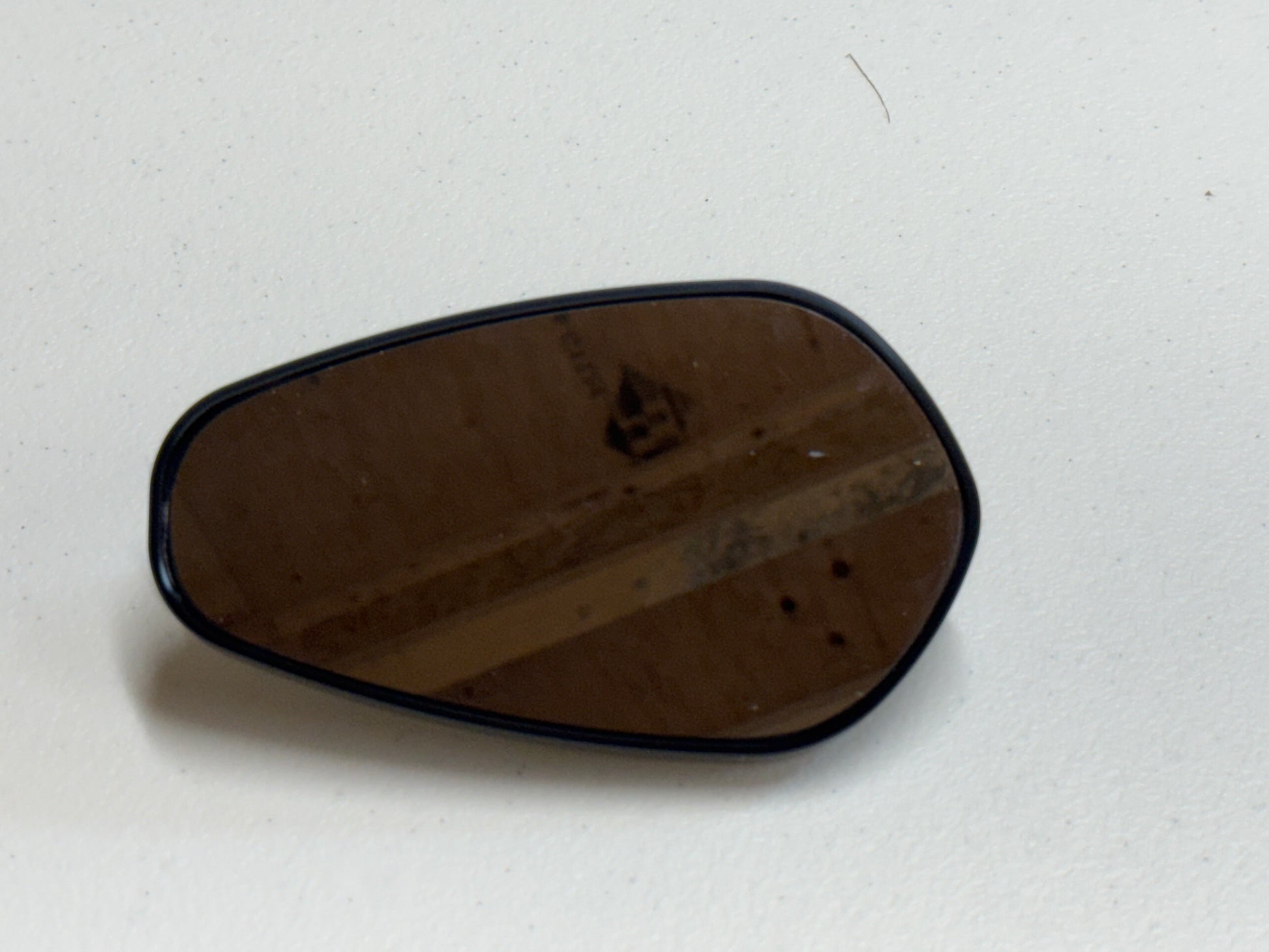

Bezel Racing111.5mm long x 65.5mm wide

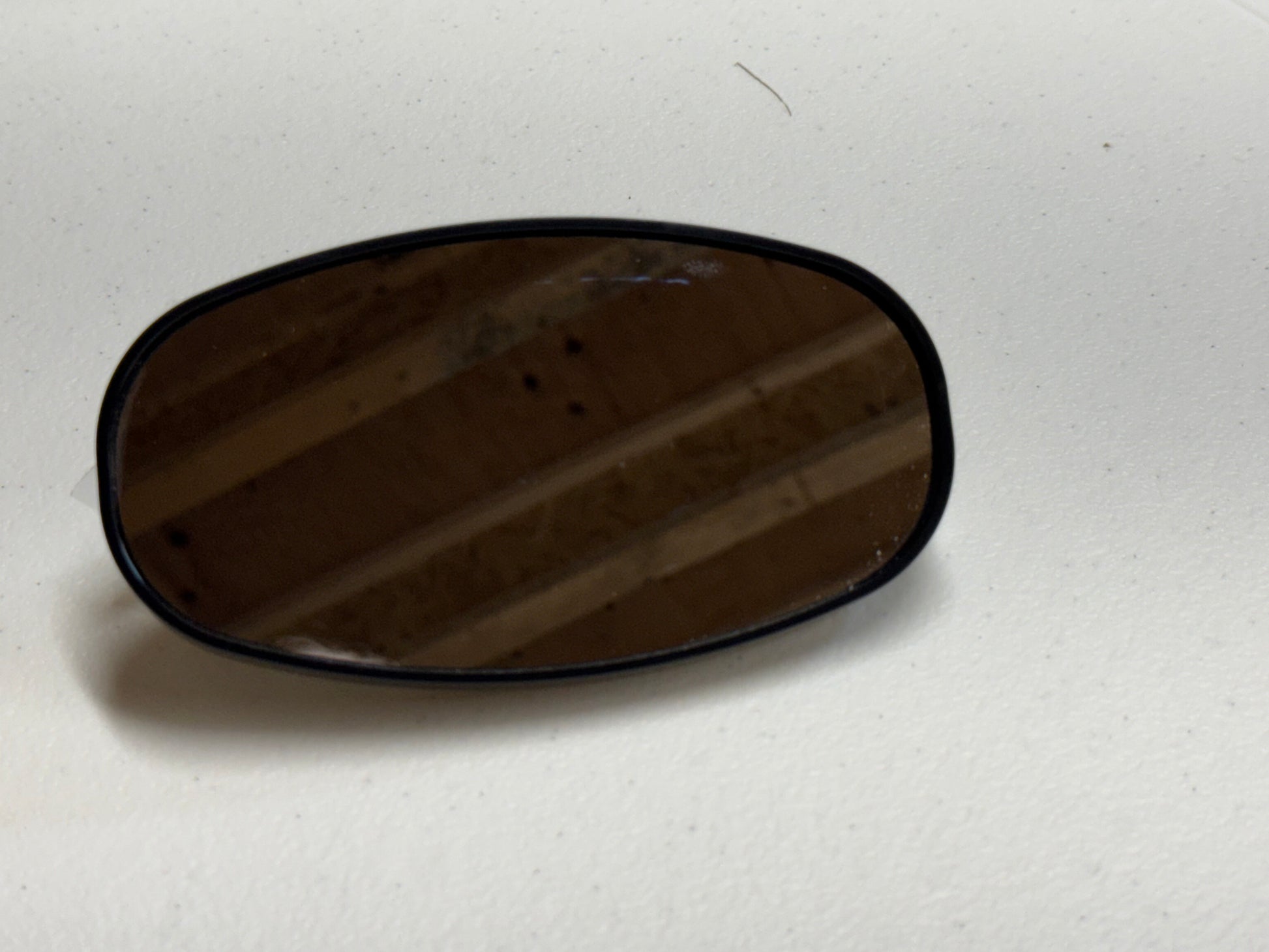

Bezel Sport112mm long x 62mm wide

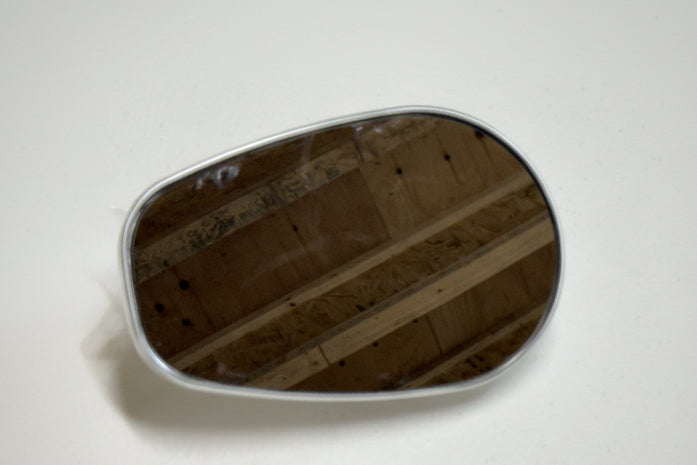

Bezel Touring115mm long x 75mm wideCollets12mm - 19mm and 22mm
Fasteners Stainless Steel
Glass mirrorR1260mm
Pack Quantity1
Weight Round182g
Weight Offset177g
Weight Oblong215g
Weight Racing230g
Weight Sport230g
Weight Touring230g
| Manufacture | Model | Year | Adaptor |
|---|---|---|---|
| BMW | K 1200 GT (K44) | 2005 - 2008 | 28 |
| BMW | K 1200 R (K43) | 2004 - 2008 | 28 |
| BMW | K 1200 R SPORT (K43) | 2006 - 2007 | 28 |
| BMW | K 1200 S (K40) | 2004 - 2008 | 28 |
| BMW | K 1300 GT (K44) | 2008 - 2010 | 28 |
| BMW | K 1300 R (K43) | 2008 - 2011 | 28 |
| BMW | K 1300 S (K40) | 2008 - 2015 | 28 |
| BMW | R 1200 R (K27) | 2006 - 2014 | 28 |
| BMW | R 1200 RS (K54) | 2014 - 2018 | 28 |
| BMW | R 1200 RT (K26) | 2005 - 2013 | 28 |
| BMW | R 1200 RT (K52) | 2013 - 2018 | 28 |
| BMW | R 1200 S (K29) | 2005 - 2006 | 28 |
| BMW | R 1250 RS (K54) | 2018 - 2022 | 28 |
| BMW | R 1250 RT (K52) | 2018 - 2022 | 28 |
| BMW | R nineT (K21) | 2013 - 2022 | 60 |
| BMW | R nineT Pure (K22) | 2015 - 2022 | 60 |
| BMW | R nineT Racer (K32) | 2015 - 2020 | 60 |
| BMW | R nineT Scrambler (K23) | 2015 - 2022 | 60 |
| BMW | R nineT Urban G/S (K33) | 2016 - 2022 | 60 |
| BMW | S 1000 R (K47) | 2013 - 2020 | 60 |
| BMW | S 1000 RR (K46) | 2009 - 2018 | 60 |
| Kawasaki | 1400GTR | 2008 - 2016 | 28 |
| Kawasaki | ER-6f-n | 2006 - 2016 | 28 |
| Kawasaki | GPZ1100 | 1995 - 1997 | 28 |
| Kawasaki | GTR1000 | 1994 - 2006 | 28 |
| Kawasaki | Versys 1000 | 2011 - 2018 | 28 |
| Kawasaki | Versys 650 | 2007 - 2022 | 28 |
| Kawasaki | Z1000 | 2003 - 2020 | 28 |
| Kawasaki | Z1000R | 2018 - 2020 | 28 |
| Kawasaki | Z1000SX | 2011 - 2019 | 28 |
| Kawasaki | Z750 | 2004 - 2013 | 28 |
| Kawasaki | Z750R | 2011 - 2013 | 28 |
| Kawasaki | Z800 | 2013 - 2016 | 28 |
| Kawasaki | Z900 | 2017 - 2022 | 28 |
| Kawasaki | Z900 Performance | 2021 - 2022 | 28 |
| Kawasaki | Z900 SE | 2022 - 2022 | 28 |
| Kawasaki | Z900RS | 2018 - 2022 | 28 |
| Kawasaki | Z900RS CAFÉ | 2019 - 2020 | 28 |
| Kawasaki | Z900RS SE | 2022 - 2022 | 28 |
| Kawasaki | ZRX-1100 | 1997 - 2000 | 28 |
| Kawasaki | ZRX-1200 | 2001 - 2004 | 28 |
| Kawasaki | ZRX-1200R | 2001 - 2006 | 28 |
| Kawasaki | ZX-10R | 2010 - 2020 | 28 |
| Kawasaki | ZX-10R SE | 2018 - 2020 | 28 |
| Kawasaki | ZX-10RR | 2017 - 2019 | 28 |
| Kawasaki | ZX-14 | 2006 - 2011 | 28 |
| Kawasaki | ZX-14R ZZR1400 | 2012 - 2021 | 28 |
| Kawasaki | ZX-14R ZZR1400 Performance | 2016 - 2019 | 28 |
| Kawasaki | ZX-14R ZZR1400 Performance Sport | 2016 - 2020 | 28 |
| Kawasaki | ZX-6R | 1995 - 2021 | 28 |
| Kawasaki | ZX-6RR | 2003 - 2006 | 28 |
| Kawasaki | ZX-7R | 1996 - 2003 | 28 |
| Kawasaki | ZX-7RR | 1996 - 1997 | 28 |
| Kawasaki | ZX-9R | 1994 - 2003 | 28 |
| Kawasaki | ZXR750 | 1989 - 1995 | 28 |
| Kawasaki | ZXR750R | 1991 - 1994 | 28 |
| Kawasaki | ZZR1100 | 1990 - 2001 | 28 |
| Kawasaki | ZZR1200 | 2002 - 2005 | 28 |
| Kawasaki | ZZR600 | 1990 - 2007 | 28 |
| Triumph | America | 2003 - 2016 | 06 |
| Triumph | Bonneville | 2000 - 2015 | 06 |
| Triumph | Bonneville SE | 2009 - 2013 | 06 |
| Triumph | Bonneville T100 | 2002 - 2016 | 06 |
| Triumph | Scrambler | 2006 - 2016 | 06 |
| Triumph | Speedmaster | 2002 - 2017 | 06 |
| Triumph | Thruxton | 2003 - 2015 | 06 |
| Yamaha | MT-07 | 2014 - 2022 | 16 |
| Yamaha | MT-09 | 2014 - 2020 | 16 |
| Yamaha | MT-09 SP | 2018 - 2020 | 16 |
| Yamaha | MT-10 | 2016 - 2022 | 16 |
| Yamaha | MT-10 SP | 2018 - 2022 | 16 |
| Yamaha | MT-125 | 2018 - 2019 | 16 |
| Yamaha | XSR700 | 2016 - 2021 | 16 |
| Yamaha | XSR900 |
