Description
OEM Part Numbers: 41700235(A) 41700493(A)

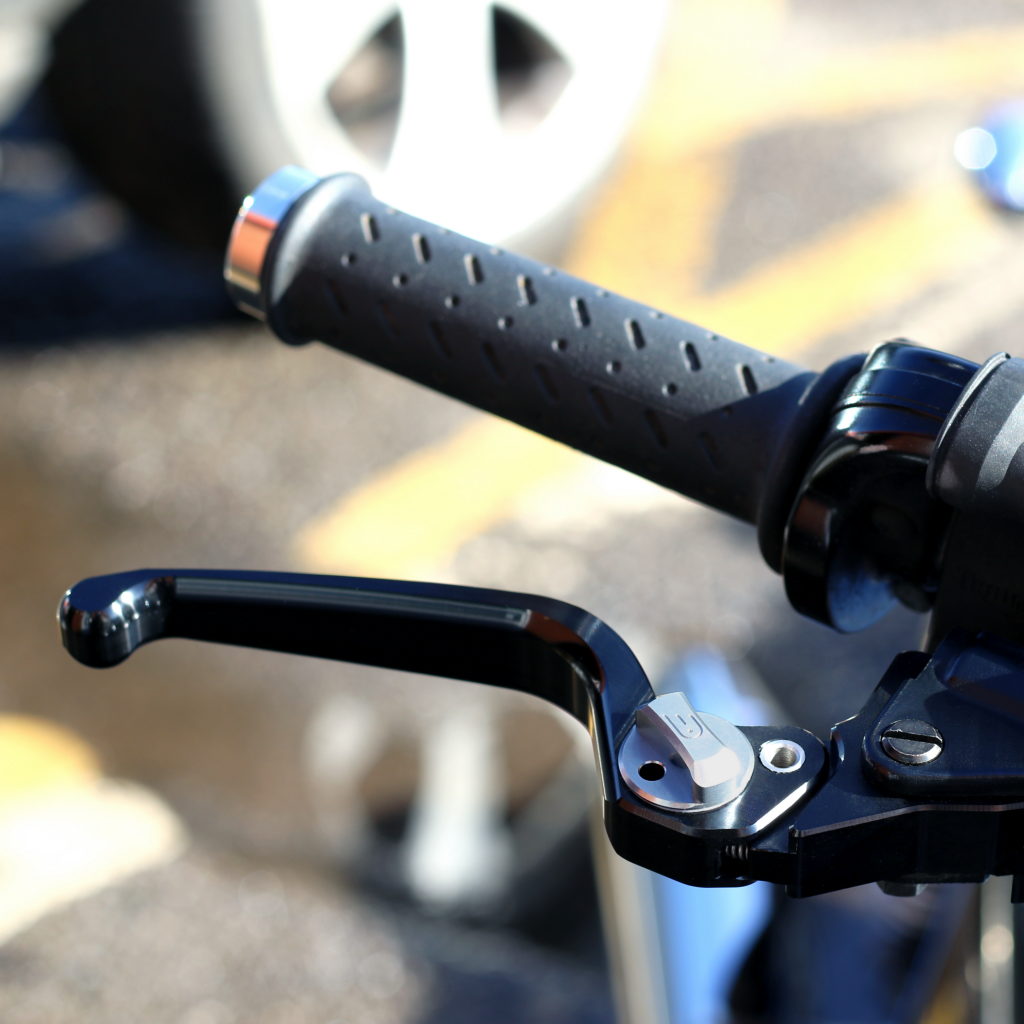

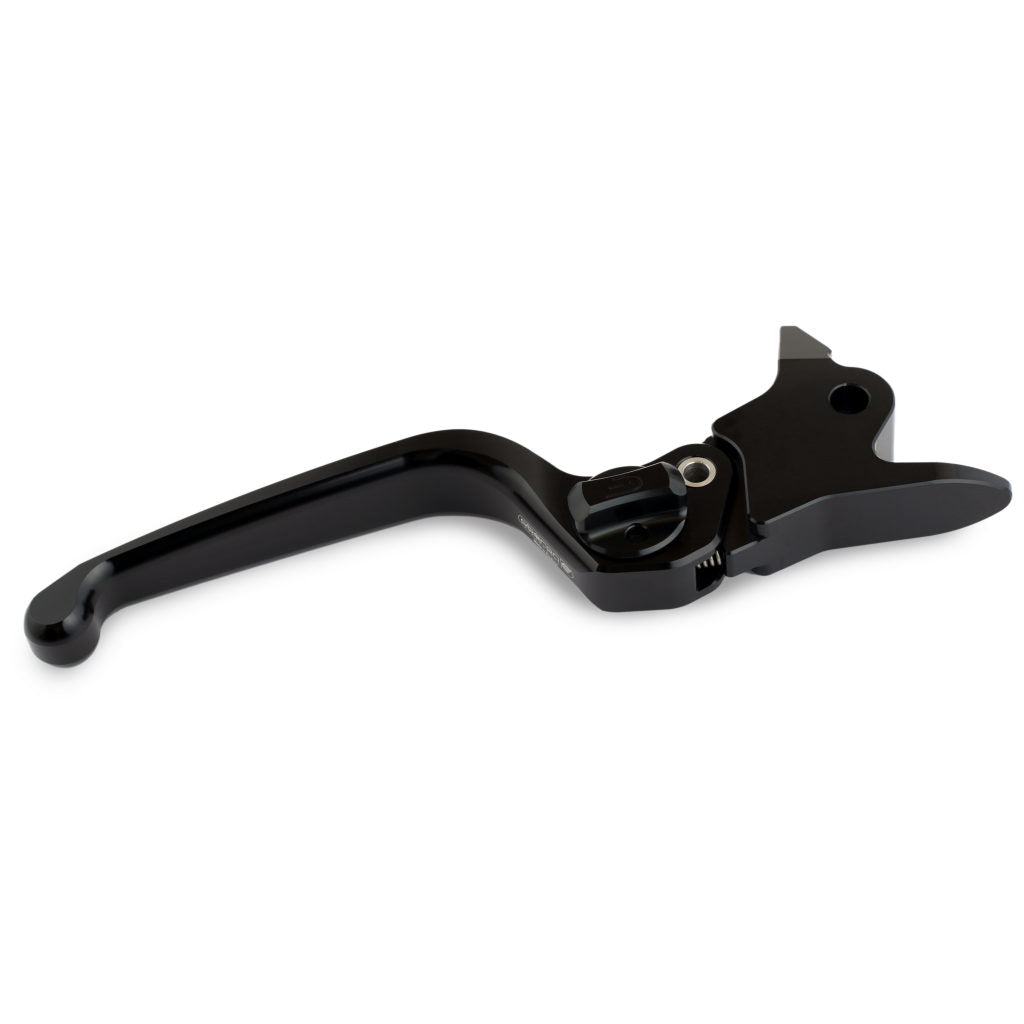

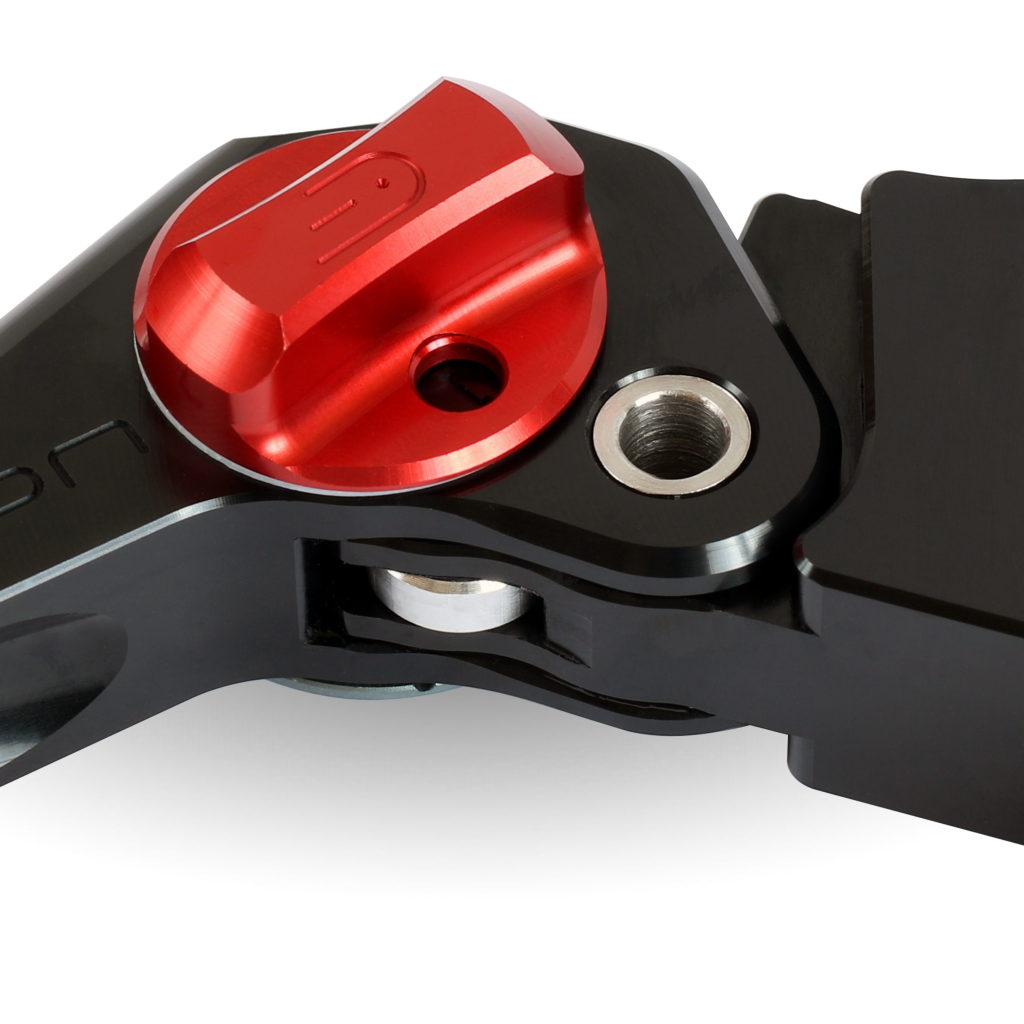

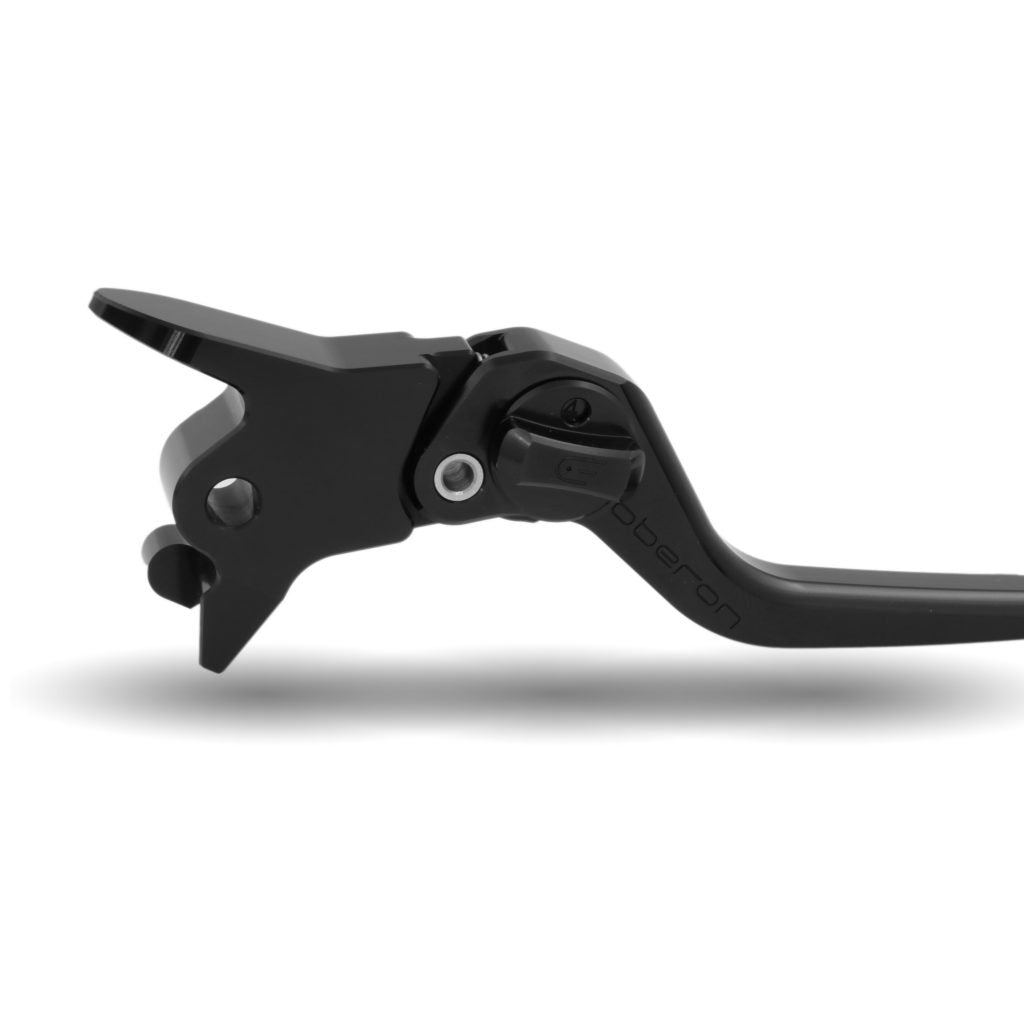

Adjustable motorcycle brake levers by Oberon Performance. Adjustment is achieved with fingertip control in either adjuster direction. The eight adjustments are either side of position 4 (similar to stock) giving adjustment up to 30mm (1 1/8″) of lever travel. Our unique RADIAL CAM® design achieves this extraordinary range with ease. This is mainly due to both the close tolerance design and the high precision quality roller, around which the cam operates locating each position with a comforting ‘click’. Each lever is dispatched fully assembled in the style and colour of your choice ready for use. Oberon Performance supplies a full specification sheet including part numbers with all levers. Available in 3 blade styles, Standard, AirO and Custom.
Kit also includes 1 off 8mm circlip and 1 off 10mm circlip.
Lever Installation Instructions
| Adjustable Positions | 8 |
| Adjustment Range | 30mm |
| Alloy | Aluminium 6000 series |

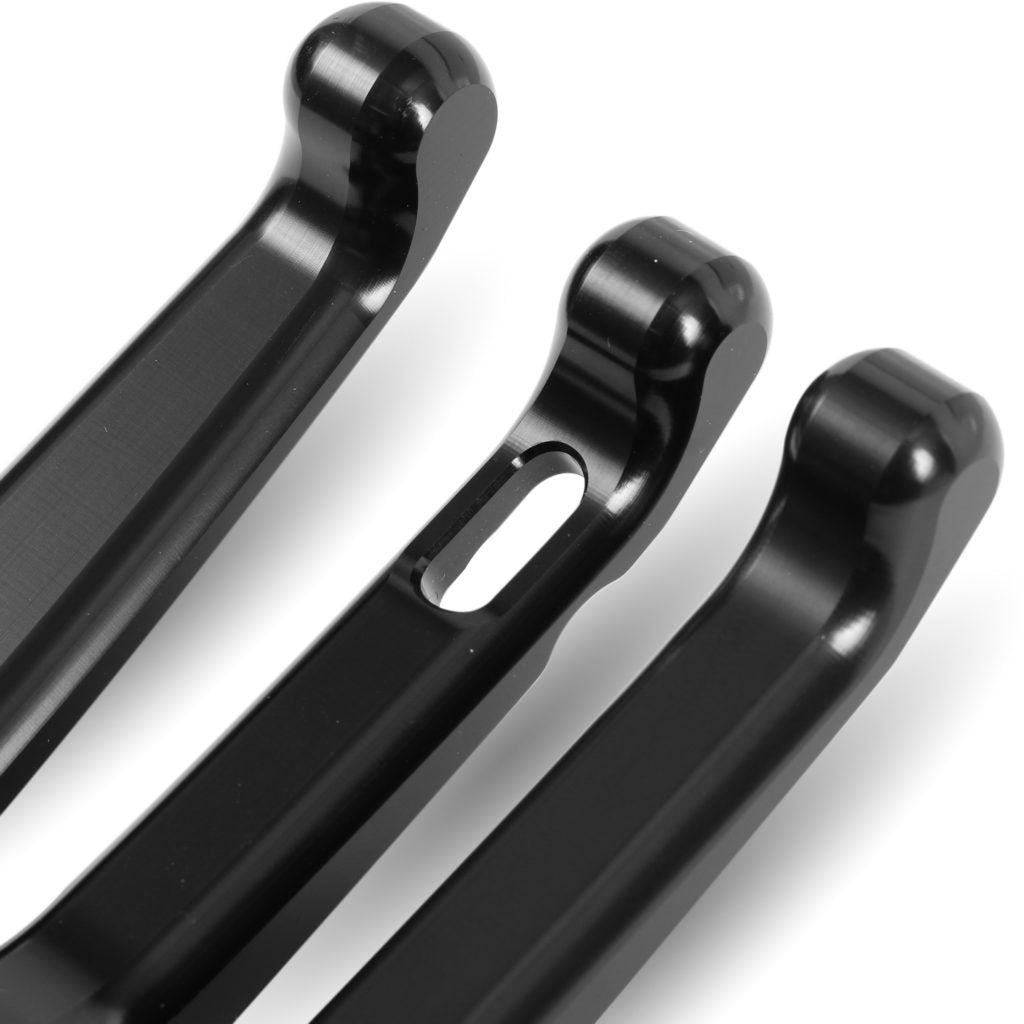

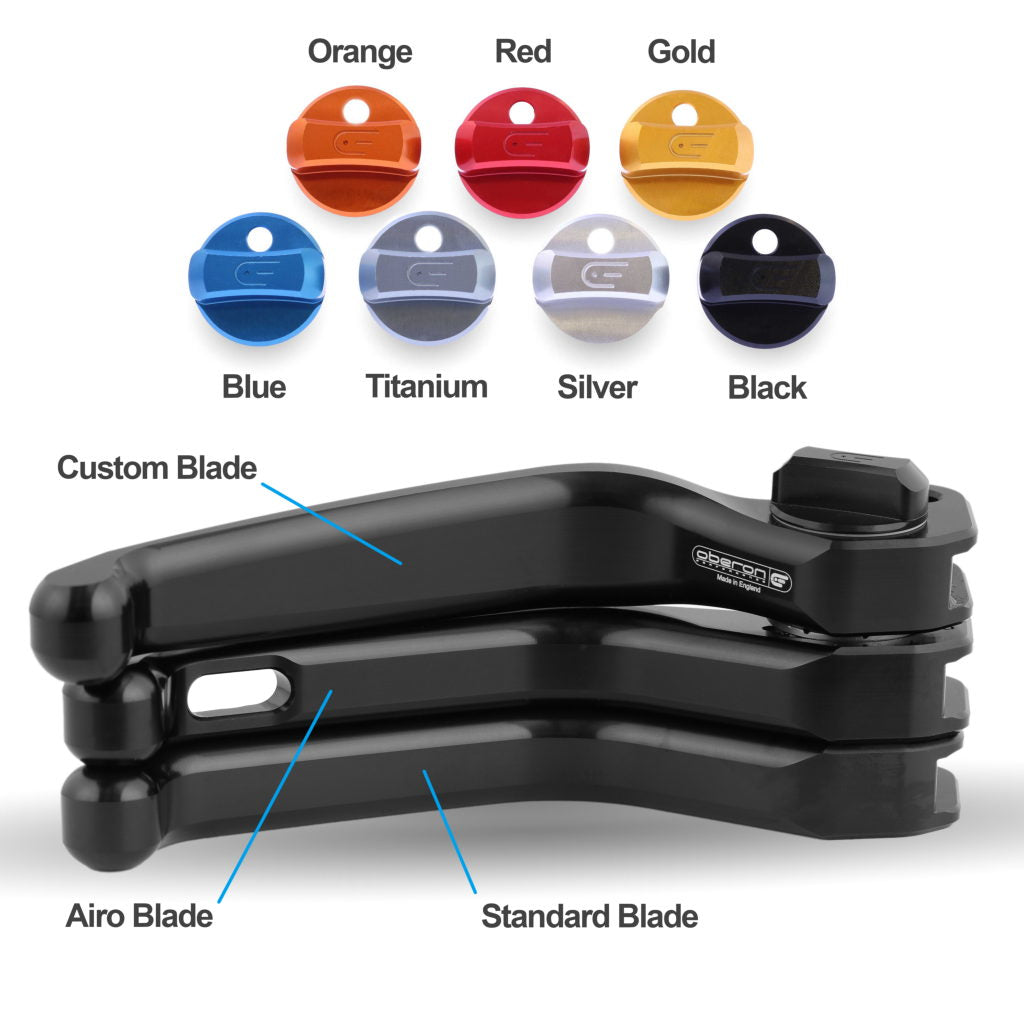

| Blade Styles | Custom | Airo | Standard |
| Blade Colours | Black | Blue | Gold | Orange | Red | Silver | Titanium |
| Switch Colours | Black | Blue | Gold | Orange | Red | Silver | Titanium |
| Fasteners | Stainless Steel |
| Pack Quantity | 1 |
THIS BRAKE LEVER WILL FIT THE FOLLOWING MODELS
| Manufacture | Model | Year |
|---|---|---|
| Harley Davidson | FLDE DELUXE | 2018 - 2020 |
| Harley Davidson | FLFB FAT BOY | 2018 - 2019 |
| Harley Davidson | FLFBS FAT BOY 114 | 2018 - 2023 |
| Harley Davidson | FLFBS FAT BOY 114 115TH ANNIVERSARY | 2018 - 2018 |
| Harley Davidson | FLHC HERITAGE CLASSIC | 2018 - 2021 |
| Harley Davidson | FLHCS HERITAGE CLASSIC 114 | 2018 - 2024 |
| Harley Davidson | FLHCS HERITAGE CLASSIC 114 115TH ANNIVERSARY | 2018 - 2018 |
| Harley Davidson | FLI HYDRA-GLIDE REVIVAL | 2024 - 2024 |
| Harley Davidson | FLS SLIM | 2015 - 2017 |
| Harley Davidson | FLSB SPORT GLIDE | 2018 - 2024 |
| Harley Davidson | FLSL SLIM | 2018 - 2021 |
| Harley Davidson | FLSS SLIM S | 2016 - 2017 |
| Harley Davidson | FLSTC HERITAGE CLASSIC | 2016 - 2015 |
| Harley Davidson | FLSTF FAT BOY | 2015 - 2017 |
| Harley Davidson | FLSTFB FAT BOY LO | 2015 - 2016 |
| Harley Davidson | FLSTFBS FAT BOY S | 2016 - 2017 |
| Harley Davidson | FLSTN DELUXE | 2015 - 2017 |
| Harley Davidson | FXBB STREET BOB | 2018 - 2020 |
| Harley Davidson | FXBBS STREET BOB 114 | 2021 - 2024 |
| Harley Davidson | FXBR BREAKOUT | 2018 - 2019 |
| Harley Davidson | FXBR BREAKOUT 117 | 2023 - 2024 |
| Harley Davidson | FXBRS BREAKOUT 114 | 2018 - 2022 |
| Harley Davidson | FXBRS BREAKOUT 114 115TH ANNIVERSARY | 2018 - 2018 |
| Harley Davidson | FXDR 114 | 2019 - 2020 |
| Harley Davidson | FXFB FAT BOB | 2018 - 2020 |
| Harley Davidson | FXFBS FAT BOB 114 | 2018 - 2024 |
| Harley Davidson | FXLR LOW RIDER | 2018 - 2020 |
| Harley Davidson | FXLRS LOW RIDER S | 2020 - 2024 |
| Harley Davidson | FXLRST LOW RIDER ST | 2022 - 2024 |
| Harley Davidson | FXSB BREAKOUT | 2015 - 2017 |
| Harley Davidson | FXST STANDARD | 2021 - 2024 |
